תיאור

130 dB Max SPL
1400 WATT 2-way peak power
90° x 60°, Wide dispersion constant directivity horn
Innovative DSP Processing
1.75" Compression Driver
15" Woofer
FiRPHASE Technology
XBOOST Low Frequencies Enhancer

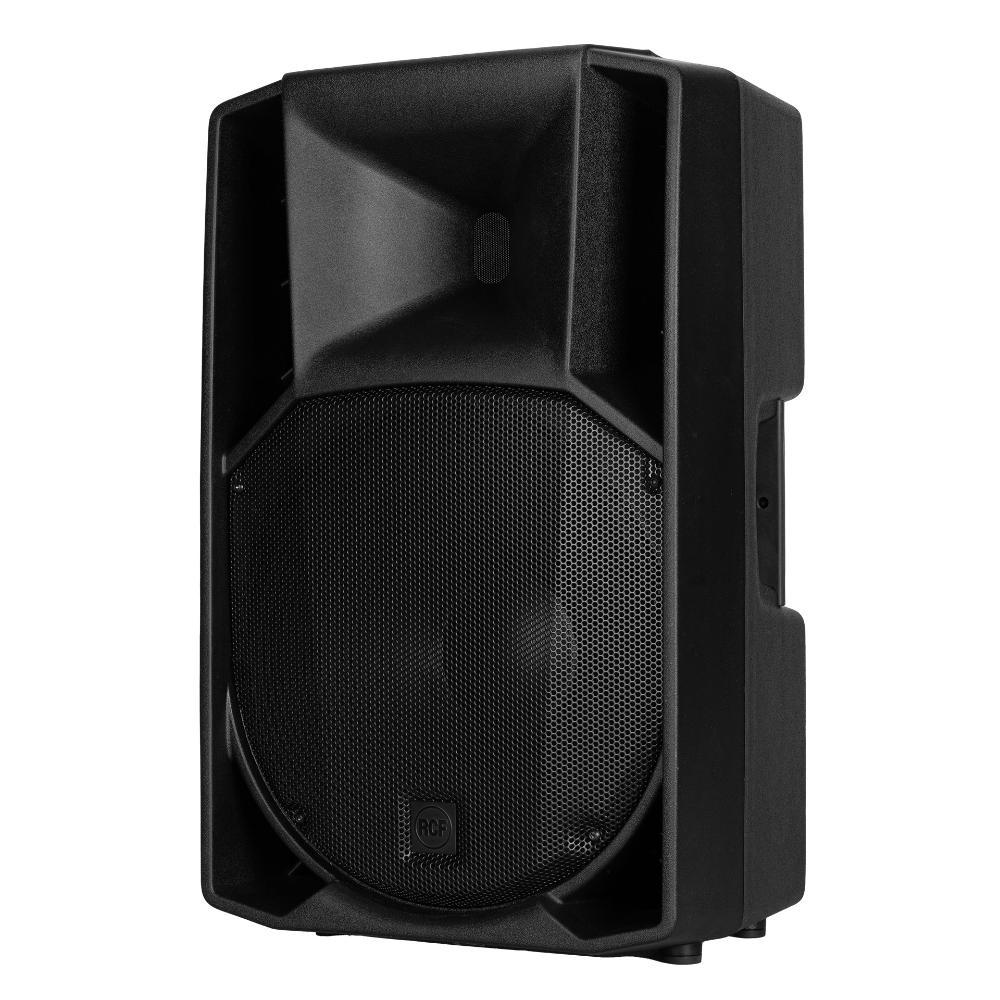

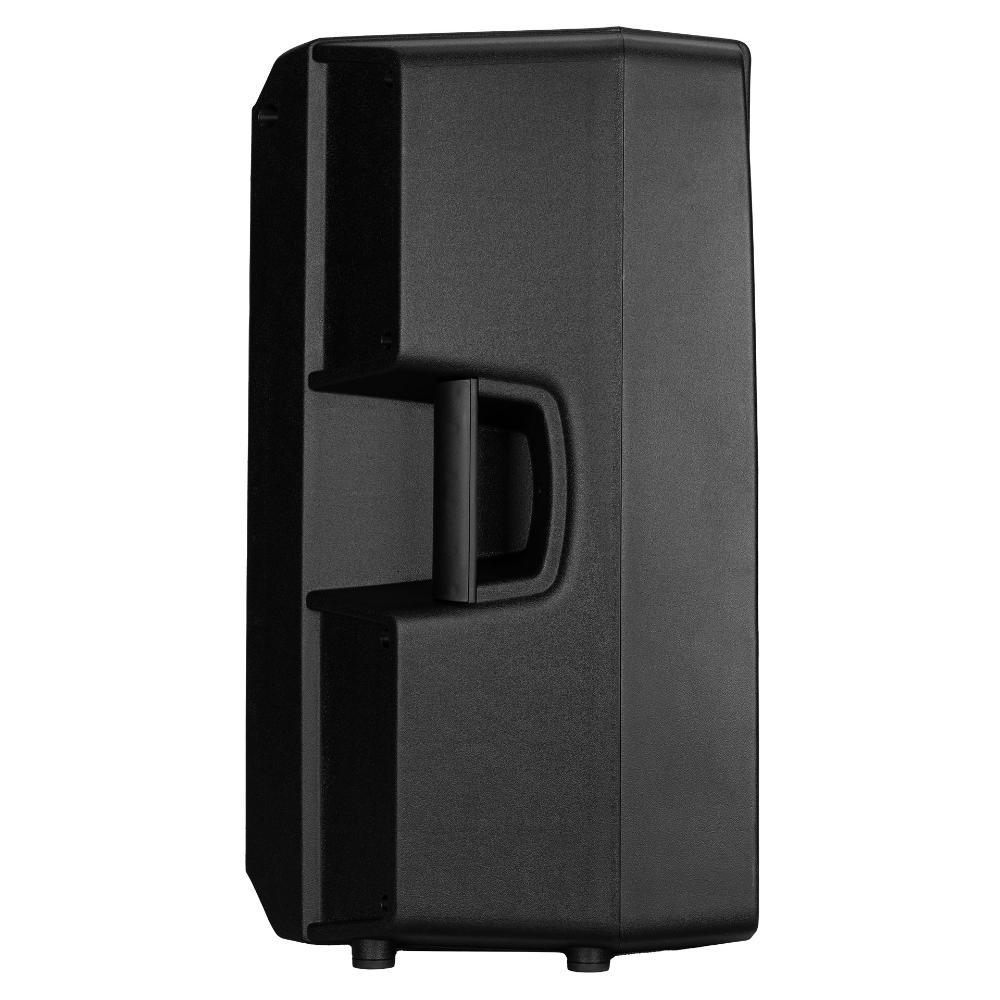

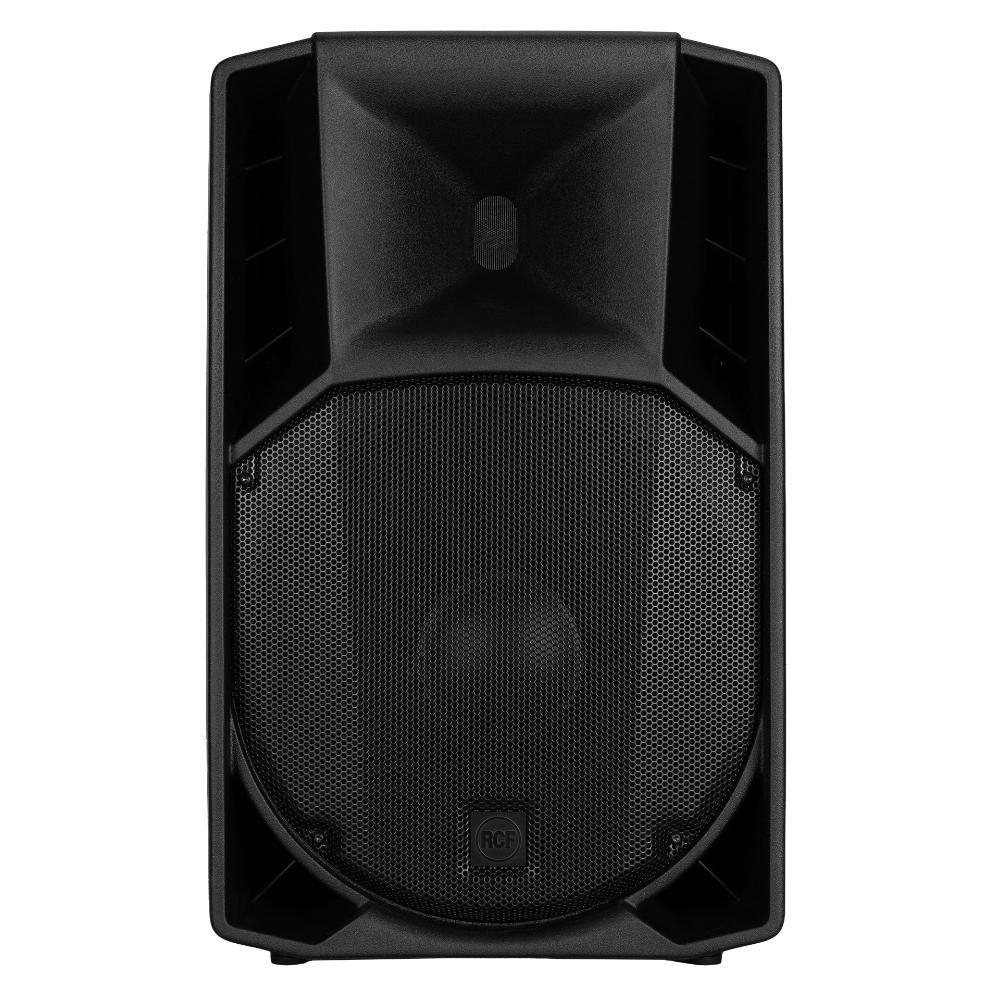

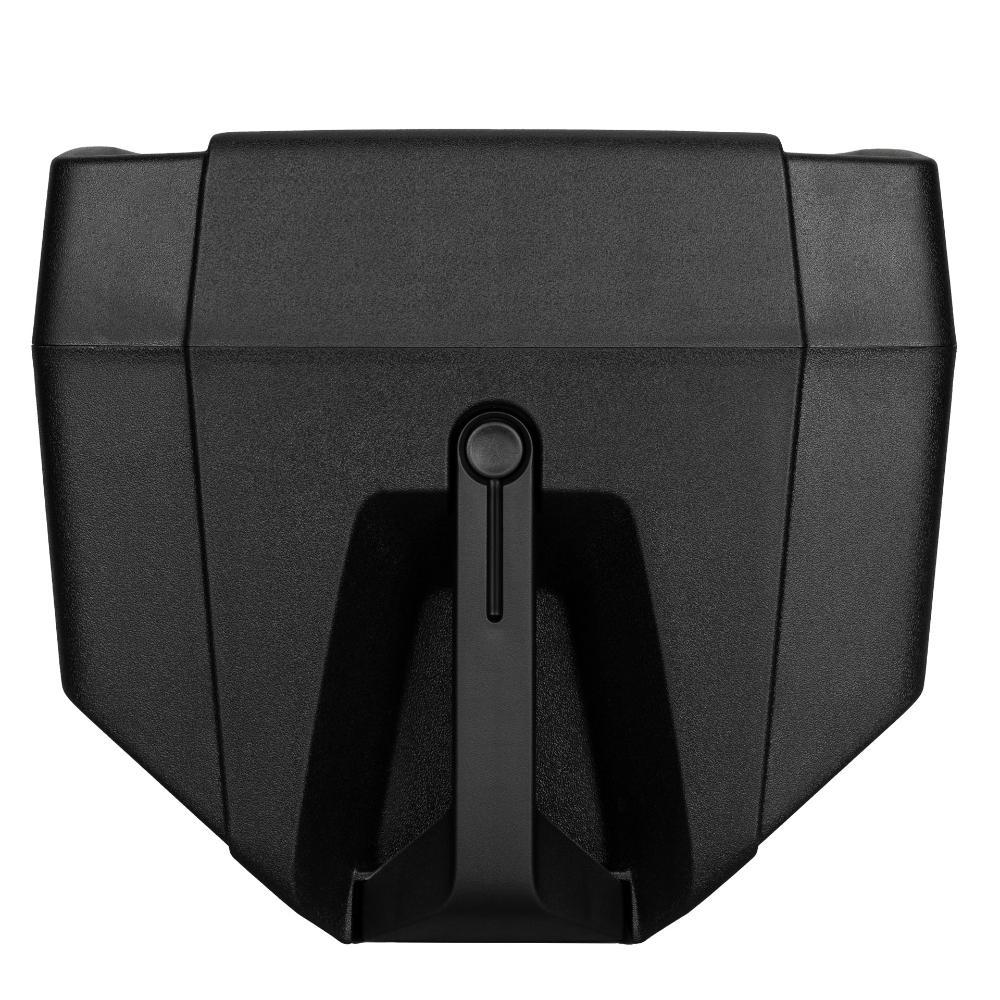

ART 715-A MK5 is a unique product in its category. The 1.75" compression driver offers unique vocal clarity and sound projection. The 15” woofer offers an extremely linear response and a precise, deep low frequency control. The transducers are produced using the most advanced assembly technologies. The amplifier delivers 1400 watts and is controlled by a DSP that takes care of crossover, equalisation, phase control, soft limiting and speaker protections.

SPECIFICATIONS
ACOUSTICAL SPECIFICATIONS

Frequency Response: 45 Hz ÷ 20000 Hz
Max SPL @ 1m: 130 dB
Horizontal coverage angle: 90°
Vertical coverage angle: 60°
TRANSDUCERS

Compression Driver: 1 x 1.0", 1.75" v.c
Woofer: 1 x 15", 2.5" v.c
INPUT/OUTPUT SECTION

Input signal: bal/unbal
Input connectors: XLR, Jack
Output connectors: XLR
Input sensitivity: -2 dBu/+4 dBu
Mic. Input Sensitivity: -32 dBu
PROCESSOR SECTION

Crossover Frequencies: 1600
Protections: Thermal, RMS
Limiter: Soft Limiter
Controls: Volume, Boost, MIC/Line
POWER SECTION

Total Power: 1400 W Peak
High frequencies: 400 W Peak
Low frequencies: 1000 W Peak
Cooling: Convection
Connections: VDE
STANDARD COMPLIANCE

Safety agency: CE compliant
PHYSICAL SPECIFICATIONS

Hardware: 2 x M10
Handles: 1 on top, 1 each side
Pole mount/Cap: Yes
Color: Black
SIZE

Height: 708 mm / 27.87 inches
Width: 437 mm / 17.2 inches
Depth: 389 mm / 15.31 inches
Weight: 19.6 kg / 43.21 lbs
